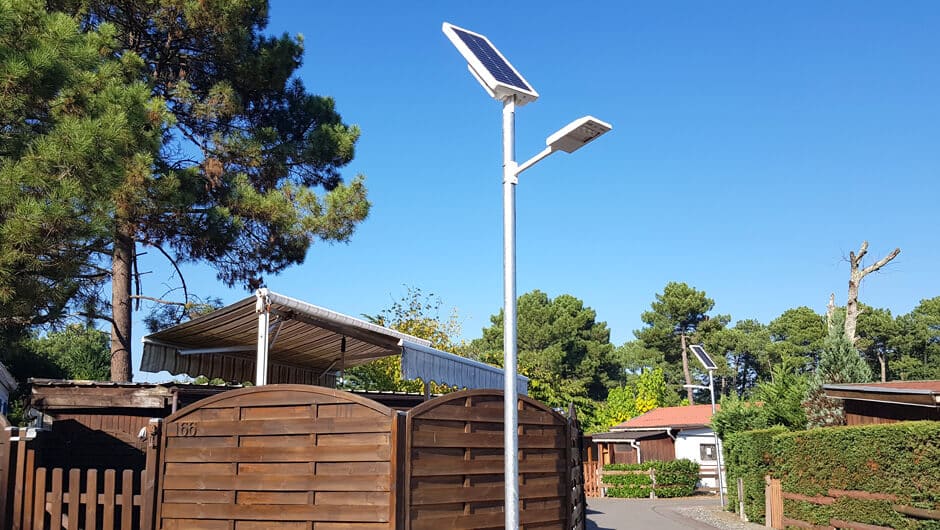

Khelus village lighting project with solar street lighting solutions



Village Khelus is a residential park located in the Arcachon basin, a few kilometres from the Sunna Design factory. With 20 hectares of small residences in the heart of the Gironde pine forest, the village offers ideal accommodation all year round for holidaymakers or long-term residents.



  Residential area

   Gujan Mestras, FRANCE

  UP2

Eclairage public solaire d'un camping

Context: change an obsolete outdoor lighting network



For safety reasons, the village wanted to remove an obsolete outdoor lighting network. The site only included low-level bollard lighting at each intersection of the village’s lanes and the constraints associated with trench work as well as the energy savings provided by an autonomous lighting solution led the managers to opt for solar lighting.



The risk of damaging existing networks in the absence of construction plans, the narrowness of the tracks and the inconvenience caused by trench work led the Khelus Village to consider an alternative solution to maintain emergency lighting. The price competitiveness, the responsiveness of the Sunna team and the desire to work with a local economic player were decisive factors in the choice of the solution.

Eclairage public solaire d'un camping

Intelligent & connected solar street solution for an holiday village



The Up1 with its compact design and powerful lighting is perfectly suited for low-level lighting, without visual impact on the environment, it operates 365 days a year and resists extreme weather conditions. Finally, its Plug & Play function allows remote control by our application, SunnAPP (profile modification according to the seasons with or without detection). Dozens of residents and holidaymakers can now walk and drive safely in their driveways and the high-performance lighting reassures residents about a feeling of insecurity (burglary, etc…)



“Even when the flow is lowered to 20% in the middle of the night, it allows a good view of the intersection area. When the flow goes up to 100% in case of detection, you can see very clearly the way home”



Confor.elec, installer

  • Eclairage solaire autonome à Khelus village, Arcachon
  • Eclairage solaire autonome à Khelus village, Arcachon
  • Eclairage public solaire d'un camping
  • Eclairage public solaire d'un camping
  • Eclairage public solaire d'un camping
  • Eclairage public solaire d'un camping
Year



2018
Location

Khelus Club, Gujan-Mestras, France
Client

Khelus village
Product(s) used



UP1
Agent



Confor.elec

Which products for this field of application ?

    Path and crosswalk Park and recreation Path and crosswalk Park and recreation Parking lot

    The UP1 is a reliable and robust stand-alone solar lighting solution, particularly suitable for pedestrian, bicycle path and car park lighting. This innovative product offers a very simple and fast installation with un- matched performance and connected services such as SunnAPP.



    Do you have a similar project or any other project? Talk to our sales team!

    Road and street Road and street Parking lot
    The UP2 is reliable and robust, particularly suitable for road, car park and industrial lighting. This innovative product offers a very simple and fast installation with unmatched performance and connected services such as Sunnap'.   Do you have a similar project or any other project ? Talk to our sales team!
    Road and street Road and street
    The UP4 is reliable, powerful and robust, particularly suitable for road and car park lighting. This innovative product offers a very simple and fast installation with unmatched performance and connected services such as Sunnap'.   Do you have a similar project or any other project ? Talk to our sales team!
    Lampadaire solaire Sunna Design UP1 noir Lampadaire solaire UP1 intelliget et connecté blanc Lampadaire solaire UP1 intelliget et connecté marron
    Lampadaire solaire Sunna Design UP2 noir Lampadaire solaire Sunna Design UP2 blanc Lampadaire solaire UP2 intelliget et connecté marron
    Lampadaire solaire Sunna Design UP4 double lanterne noir Lampadaire solaire Sunna Design UP4 double lanterne blanc Lampadaire solaire UP4 intelliget et connecté double lanterne marron

    Specifications UP1

    Lighting
    Lighting power
    1,600 to 3,300 lumens
    Consumption
    10 W to 20 W
    Lighting efficiency
    Up to 165 lm/W
    Color temperature options
    2200K, 2700K, 3000K, 4000K
    Lifespan
    110,000 hours
    Photovoltaic panels
    Technology
    Photovoltaïc modules (Monocrystalline silicon)
    Power
    50 Wc
    Lifespan
    > 20 years at 80% of initial power
    Battery
    Technology
    NiMH , battery, maintenance free, high resistance to extreme temperatures
    Capacity
    120 Wh
    Operating temperature range
    -40°C to +70°C (-40°F to 158°F)
    Lifespan
    12 years
    General
    SCx
    0,40 m2
    Fixation
    Top mounting Ø60 mm
    Weight (without pole)
    15 kg

    Specifications UP2

    Lighting
    Lighting power
    3,600 to 7,200 lumens
    Consumption
    20 W to 40 W
    Lighting efficiency
    Up to 165 lm/W
    Color temperature options
    2200K, 2700K, 3000K, 4000K
    Lifespan
    110.000 hours
    Photovoltaic panels
    Technology
    Photovoltaïc modules (Monocrystalline silicon)
    Power
    80 Wc
    Lifespan
    > a 20 años al 80% de la potencia inicial
    Battery
    Technology
    NiMH , battery, maintenance free, high resistance to extreme temperatures
    Capacity
    240 Wh
    Operating temperature range
    -40°C to +70°C (-40°F to 158°F)
    Lifespan
    12 years
    General
    SCx
    0,59 m2
    Fixation
    Top mounting Ø60 mm
    Weight (without pole)
    20.5 kg

    Specifications UP4 Dual

    Lighting
    Lighting power
    1 lantern: 7,200 lm / 2 lanterns: 7200 to 14,400* lumens
    Consumption
    40 W to 80 W
    Lighting efficiency
    Up to 165 lm/W
    Color temperature options
    2200K, 2700K, 3000K, 4000K
    Lifespan
    110.000 hours
    * Available with motion sensor (UP4 Dual)
    Photovoltaic panels
    Technology
    Photovoltaïc modules (Monocrystalline silicon)
    Power
    160 WC
    Lifespan
    > 20 years at 80% of initial power
    Battery
    Technology
    NiMH , battery, maintenance free, high resistance to extreme temperatures
    Capacity
    480 Wh
    Operating temperature range
    -40°C to +70°C (-40°F to 158°F)
    Lifespan
    12 years
    General
    SCx
    1,11 m2
    Fixation
    Top mounting Ø76 mm
    Weight (without pole)
    44.5 kg or 46k g
