Valencia’s winning investment in solar streetlights



In the city of Valencia, Spain, the observation is clear: many residential streets are equipped with obsolete public street lamps. Having already called on Sunna Design for the successful installation of solar street lamps in one of its parks, it was only natural that the municipality, along with the ETRA company in charge of street lighting maintenance, turned to this same solar technology.



  Road and street

   Valencia, SPAIN

  iSSL+

An outdated street lighting system with a complex renovation



Several small residential streets of Valencia are equipped with aging urban streetlights, unadapted to current energy and ecological challenges. The sodium lamps of these streetlights are very energy-consuming. The electrical network itself is obsolete, and would require a complete overhaul to bring the installation into compliance.



Replacing an existing street lighting system with conventional lighting involves heavy works: trenches, cabling, electrical panel, etc. Here, the entire electrical system must be renovated to comply with standards. Sodium lamps must be replaced by more recent and energy-efficient LED lamps. These interventions are both long and costly, just as unsatisfactory for the municipality as for its residents.

Solar lighting as the answer to all the expectations of the project



In 2021, the technical managers of the City of Valencia and the installer ETRA informed Sunna Design of their street lighting renovation project. A financial analysis of the situation made it possible to highlight the relevance of a solar street lighting solution for the residential areas concerned.



Sunna Design’s solar solutions allow for a fast renovation of the lighting system and present an overall investment cost equivalent to that of a conventional lighting system, the additional cost of the solar street lamp being offset by the savings made in terms of renovation of the power supply network. The operational cost is also very low thanks to the absence of an energy bill.



The City of Valencia also wanted to reduce the energy impact of its public lighting by turning to lighting solutions powered by renewable energy, for a renovation in line with the sustainable development. A total of 98 iSSL+ streetlights have been deployed, with a color temperature of 2700K to reduce the impact of street lighting on biodiversity, the Valencia region being quite tree-filled and with significant local fauna and flora.



Solar street lighting of Valencia will have cost the city less than renovating its conventional lighting system. Robust and reliable, guaranteed for 6 years and with a sober and elegant design, Sunna Design’s solar street lamps allow cities to provide efficient lighting with excellent uniformity in record time, for streets lit in a way that is just as beneficial for the inhabitants as for nature.

Year



2022
Location



València, Spain
Client



City of Valencia
Product(s)



iSSL +
Agent



ETRA

Which products for this field of application ?

    Path and crosswalk Park and recreation Parking lot Path and crosswalk Park and recreation
    The iSSL+ is a reliable and robust stand-alone solar lighting solution, particularly suitable for pedestrian walkways, cycle paths and car parks. This innovative product offers a very simple and quick installation with unmatched performance and connected services such as Sunnap'. Do you have a similar project or any other project? Talk to our sales team!
    Park and recreation Parking lot General Area Park and recreation
    The iSSL maxi Area is a reliable and robust stand-alone solar lighting solution, particularly suitable for area lighting, car parks and public squares. This innovative product offers a very simple and quick installation with unmatched performance and connected services such as Sunnap'.   Do you have a similar project or any other project ? Talk to our sales team!
    Road and street Parking lot General Area Road and street
    iSSL Maxi Road is the most reliable and robust stand-alone solar lighting solution. This innovative product offers unparalleled performance and connected services with the SunnApp, and installs very quickly.   Do you have a similar project or any other project ? Talk to our sales team!
    Lampadaire solaire Sunna Design iSSL+ noir Lampadaire solaire Sunna Design iSSL+ blanc
    Lampadaire solaire Sunna Design iSSL Maxi Area noir Lampadaire solaire Sunna Design iSSL Maxi Area blanc
    Lampadaire solaire Sunna Design iSSL Maxi Road Noir Lampadaire solaire Sunna Design iSSL Maxi Road blanc

    Specifications iSSL +

    Lighting
    Lighting power
    1,750 to 3,500 lumens
    Consumption
    10 W to 20 W
    Lighting efficiency
    Up to 175 lm/W
    Color temperature options couleur
    2700K, 3000K, 4000K
    Lifespan
    50,000 hours
    * Available with motion sensor
    PHOTOVOLTAIC PANELS
    Technology
    Photovoltaïc modules (Monocrystalline silicon)
    Power
    50 Wc
    Lifespan
    > 20 years at 80% of initial power
    Battery
    Technology
    NiMH , battery, maintenance free, high resistance to extreme temperatures
    Capacity
    120 Wh
    Operating temperature range
    -40°C to +70°C (-40°F to 158°F)
    Lifespan
    12 years
    General
    SCx
    0,16 m2
    Fixation
    Top mounting Ø60 mm
    Weight (without pole)
    14 kg

    Specifications iSSL Maxi Area

    Lighting
    Lighting power
    3,500 to 7,000 lumens
    Consumption
    20 W to 40 W
    Lighting efficiency
    Up to 175 lm/W
    Color temperature options
    2700K, 3000K, 4000K
    Lifespan
    50,000 hours
    * Available with motion sensor
    Photovoltaic panels
    Technology
    Photovoltaïc modules (Monocrystalline silicon)
    Power
    80 Wc
    Lifespan
    > 20 years at 80% of initial power
    Battery
    Technology
    NiMH , battery, maintenance free, high resistance to extreme temperatures
    Capacity
    240 Wh
    Operating temperature range
    -40°C to +70°C (-40°F to 158°F)
    Lifespan
    12 years
    General
    SCx
    0,147 m2
    Fixation
    Top mounting Ø60 mm
    Weight (without pole)
    19 kg

    Specifications iSSL Maxi Road

    Lighting
    Lighting power
    3,500 to 7,000 lumens
    Consumption
    20 W to 40 W
    Lighting efficiency
    Up to 175 lm/W
    Color temperature options
    2700K, 3000K, 4000K
    Lifespan
    50,000 hours
    * Available with motion sensor
    Photovoltaic panels
    Technology
    Photovoltaïc modules (Monocrystalline silicon)
    Power
    80 Wc
    Lifespan
    > 20 years at 80% of initial power
    Battery
    Technology
    NiMH , battery, maintenance free, high resistance to extreme temperatures
    Capacity
    240Wh
    Operating temperature range
    -40°C to +70°C (-40°F to 158°F)
    Lifespan
    12 years
    General
    SCx
    0,147 m²
    Fixation
    Top mounting Ø60 mm
    Weight
    19 kg

    You may also be interested in

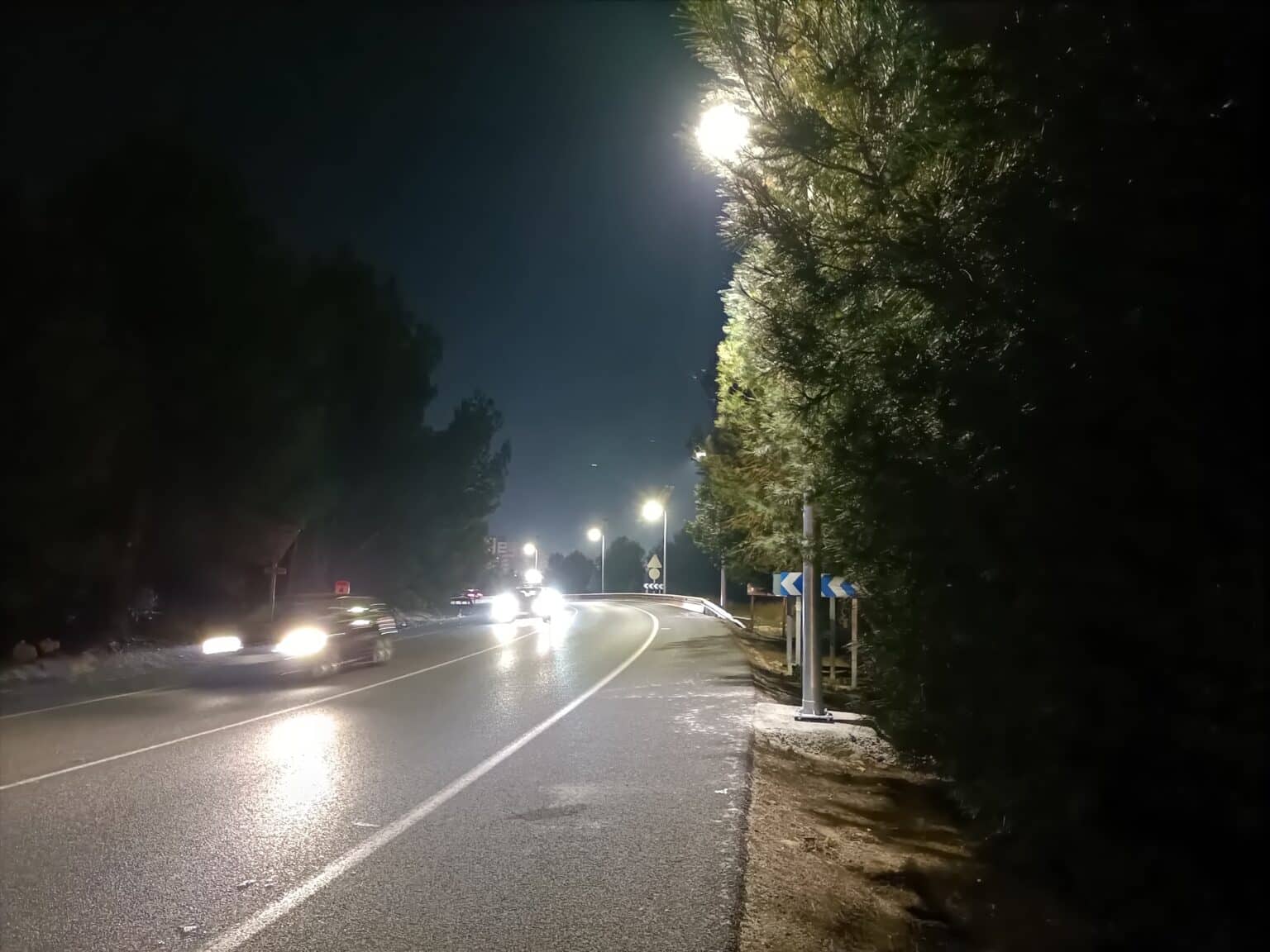

    Lampadaire solaire iSSL Maxi Road Sunna Design à Camí de s'Hostalet, Majorque, Espagne
